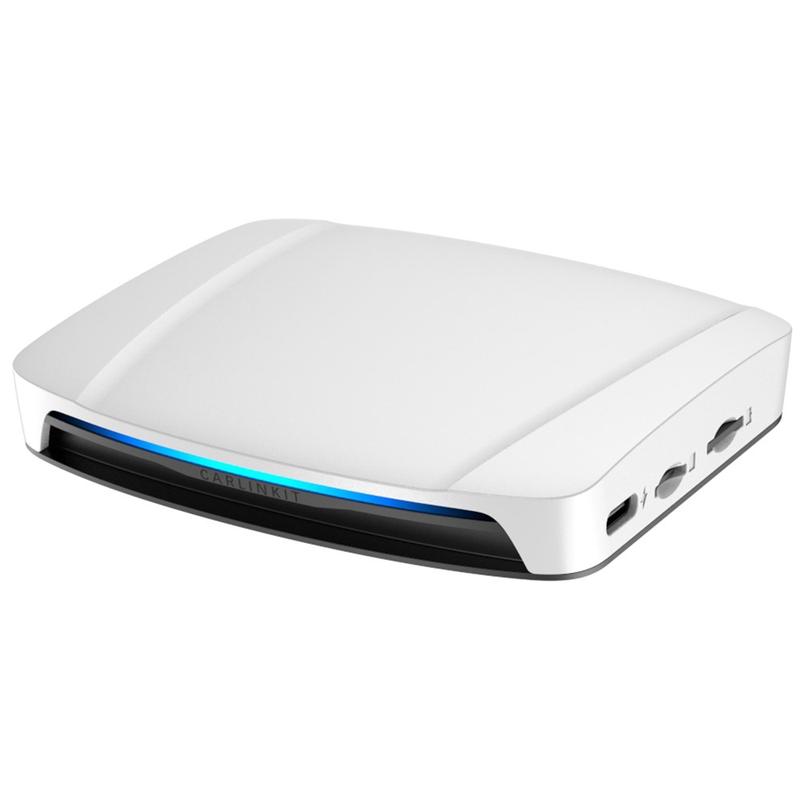

Carlinkit SDM660 Tbox UHD Wireless CarPlay / Android Auto Adapter with HDMI, USB-C, USB, TF Card Slot - 8GB/128GB, OS: Android 13, Bluetooth 5.0
This product expands the open Android system platform through the car USB interface, supports free installation of APP to achieve richer audio-visual entertainment and navigation functions, supports 4G/GPS/Bluetooth/telephone functions, and supports mobile phone Internet access to realize wireless CarPlay and wireless Android Auto function. Output high-definition images through the HDMI port, connect to other high-definition displays, and switch between split-screen displays without interfering with each other or affecting driving, thereby realizing the fun of sharing high-definition images.
Android Link Box facilitates seamless connections to open Android systems, enabling wireless CarPlay and Android Auto connectivity
Enjoy online HD multimedia entertainment with support for streaming high-definition videos and media content
Effortlessly connect to other high-definition displays for crisp and clear output imagery
Experience hassle-free multitasking with split-screen display, allowing for simultaneous usage without interference
Retain original car functionalities such as buttons and knobs for intuitive and immediate operation
Switch between original car CarPlay and Android Auto channels as needed, ensuring versatile compatibility
Specification:
Power input: 5V±0.2V 2A
Product power consumption: 6W
WiFi frequency: 802.11a/b/g/n/ac, 2.4G+5G
CPU: Qualcomm SDM660, 4xKryo Gold 2.2(or 2.4)GHz + 4xKryo Silver 1.8GHz
GPU: A512 650MHz
System: open Android system
Memory: 8GB running memory + 128GB body memory
WiFi module: WCN3980
MFI: MFI 3959
Bluetooth version: 5.0 BR/EDR/BLE
Product material: ABS
Compatible car units: models with original car’s own wired CarPlay/wired Android Auto
Resolution: adaptive (maintain original protocol resolution)
Language: Multiple languages around the world, (Arabic, Chinese, English, French)

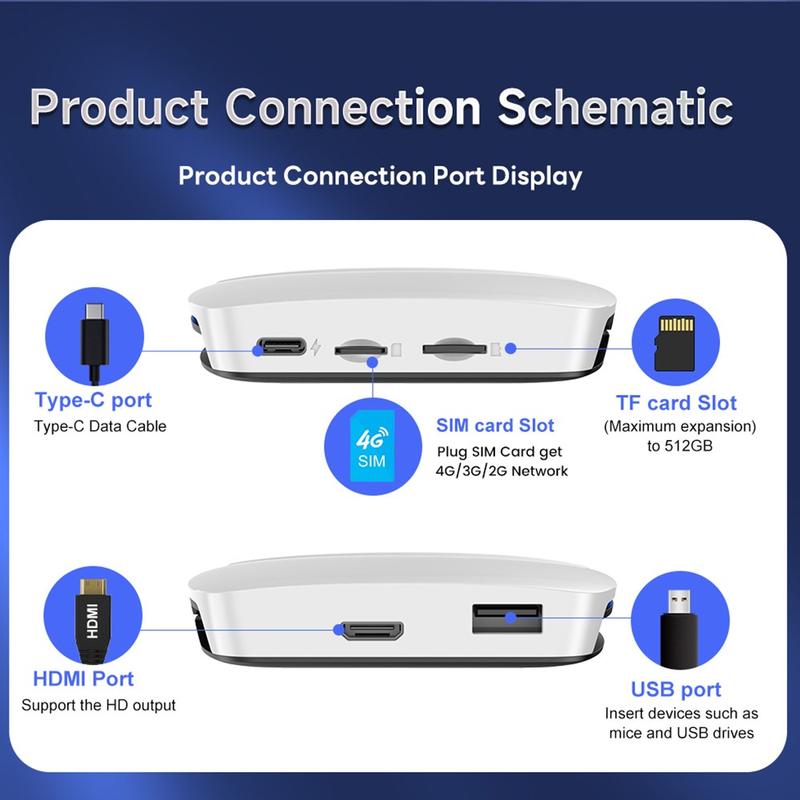

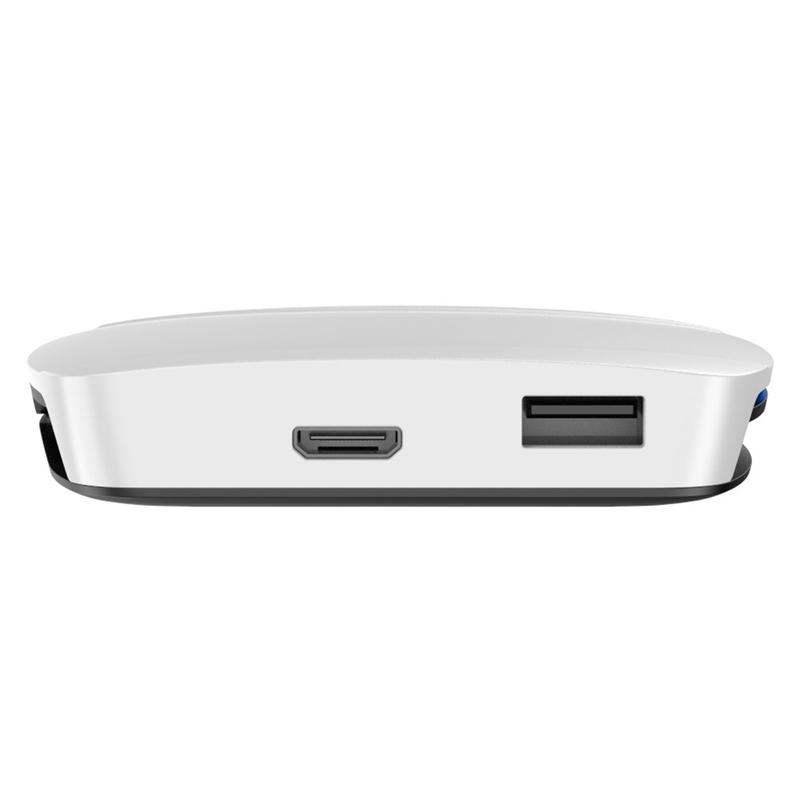

Ports: LED indicator, Type-C female port, TF card holder, USB female port, SIM card holder, HDMI interface

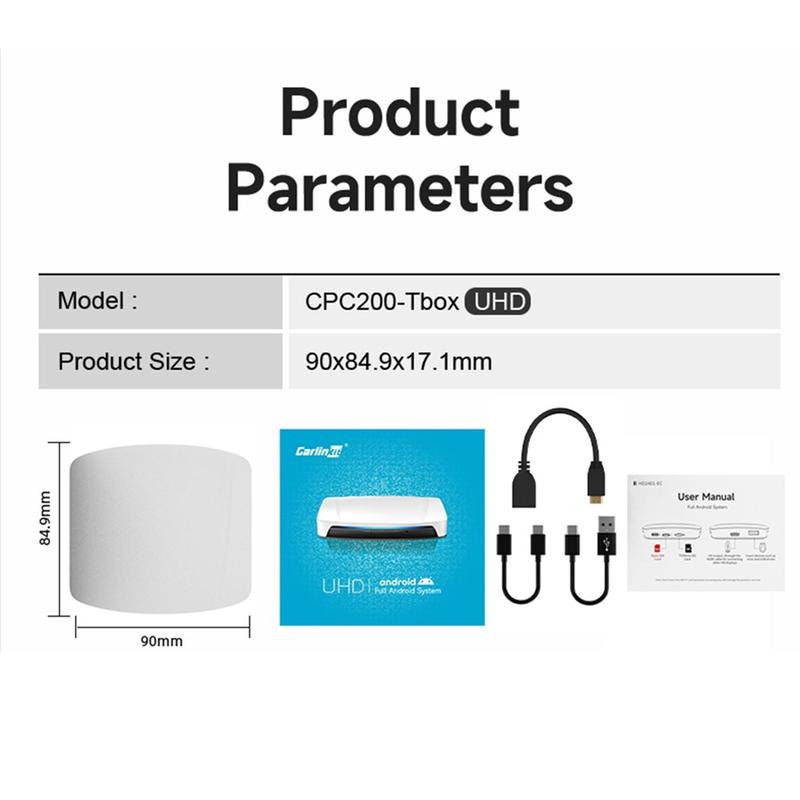

Product size: 90x84.9x17.1mm
Cable: USB-A to USB-C*1, USB-C to USB-C*1, Length=300mm
HD Adapter*1, Length=170mm
TF card supports expansion: 512GB
Wireless CarPlay: for iPhone 6 and above/for iOS 10.0 and above
Wireless Android Auto: Android phones running Android 11.0 and above
Version: Eurasian EAU (Asia, European countries)
Cellular network format: EAU SIM/Nano SIM/LTE-FDD B1/2/3/4/5/7/8/20/28/LTE-TDD B38/40/41/WCDMA B1/2/3/5/8 /GSM/EDGE 850/900/1800/1900MHz
Product Certificate:
Certification number: AT18300RC105486
Rosh certification
Patent number: ZL202230224097.X
Design patent
FCC ID:2AYC2-AITBOX
FCC certification
Certificate ID:189005
Bluetooth membership certification
Certification number: R210-181448
TELEC certification
Certification number: AT18220WC102475
CMIIT ID: 2022AP9009
CE certification
SRRC certification
Certification ID: CCAH22LP9040T2
NCC certification
Note：
Incorrect card insertion may cause damage to the card slot
Under normal circumstances, the Android Auto function is not supported in mainland China
Insert the card pin and hold it for about 2-3 seconds to switch to CarPlay (default) or Android Auto mode
EAN: 5714122456625
-
