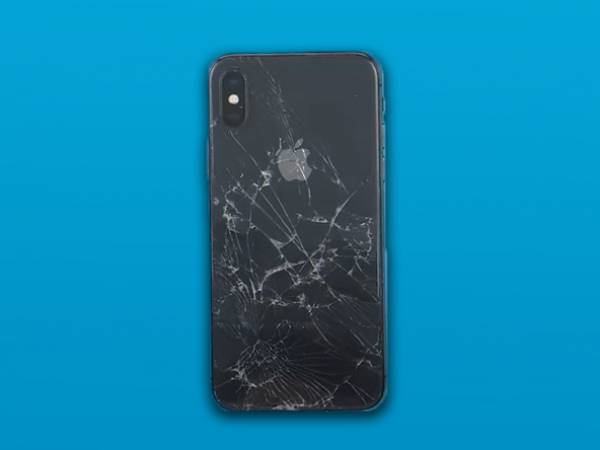

iPhone X Back Cover Replacement

Send this link via e-mail


thumb image 1
thumb image 2
thumb image 3

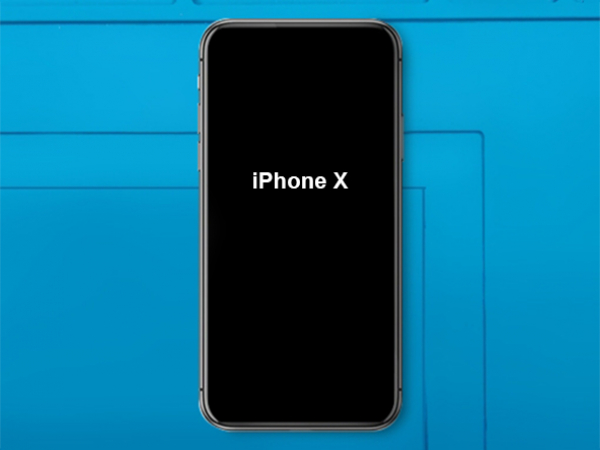

Step 1 - BEFORE YOU START


  • - Discharge the battery to less than 25% before you begin disassembling the phone.
    - Turn off your phone.
    - Simply remove the SIM tray.

  • Caution:

    - In case the battery has swollen:
    - Take the necessary precautions and steps,
    - Avoid heating up your phone.
    - Use hand and eye protection.

  • Tip:

    - If the display glass is shattered, tape over the glass to prevent additional breakage.
    - Cover the display with overlapping strips of clear self-adhesive tape.

thumb image 1
thumb image 2
thumb image 3

Step 2 - SECURE THE PHONE
Back to top

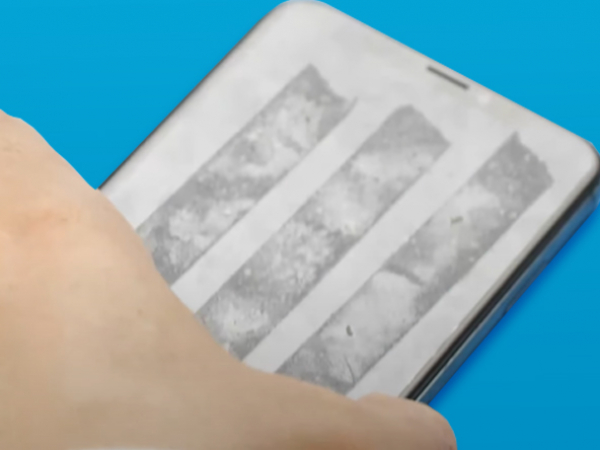

  • - Attach three pieces of double-sided tape to the screen.
    - Pull the taper covers off.

Step 3 - BEGIN THE REPAIRING PROCESS
Back to top

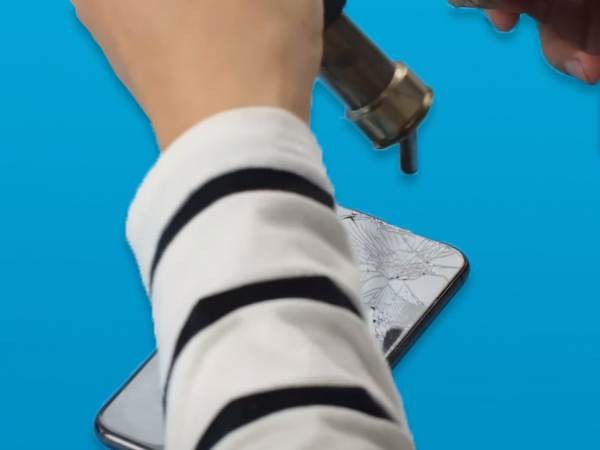

  • - Set the wind speed to 100 and the hot air gun to a temperature of 270°C.
    -Warm the back cover.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

Step 4 - REPAIRING PROCESS
Back to top

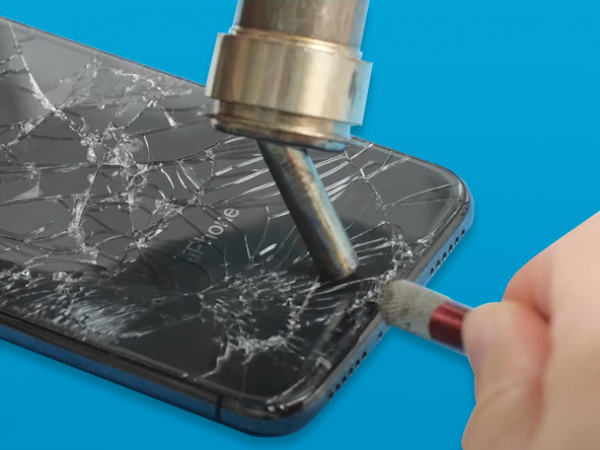

  • - Carefully remove the rear cover using a blade.
    - Be careful not to harm the plastic frame.
    - First, take out the piece of glass covering the Flex Cable for the Qi Wireless Charging Port.
    - Next, take the glass chunk off of it.
    - Don't hurt it while doing it.
    - And the other components.
    - Remove the glue

thumb image 1
thumb image 2
thumb image 3
thumb image 4

Step 5 - INSTALLING THE NEW GLASS
Back to top

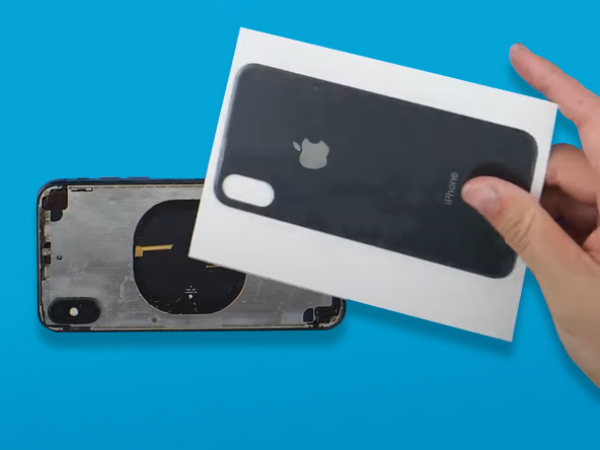

  • - Take a new iPhone X rear case.
    - Install it on the phone if you can.
    - Remove the last piece of glass if there is a gap.
    - Try installing once more.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5
thumb image 6

Step 6 - GLUING THE BACK COVER
Back to top

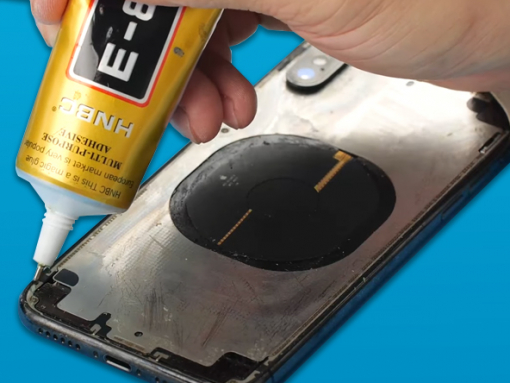

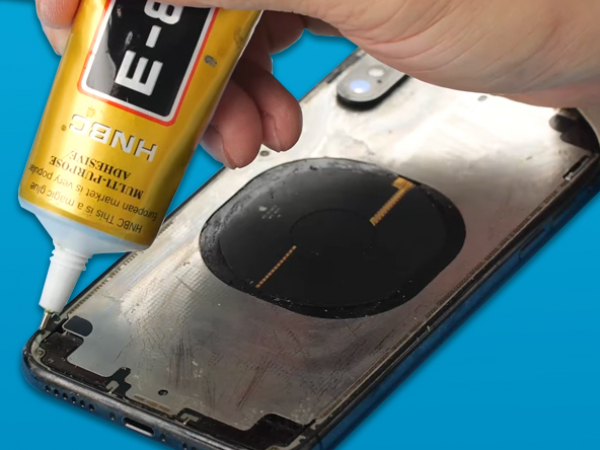

  • - Put the glue on.
    - Place the new rear cover on.
    - Add a weighted object to make it fit better.
    - Hold out for roughly 15 minutes.
    - The rear cover should be installed perfectly.

thumb image 1
thumb image 2
thumb image 3
thumb image 4
thumb image 5

Step 7 - FINISHING THE REPAIRS
Back to top


  • - Remove the glue from the screen.
    - Check out the wireless charging capability.
    - The rear case for the iPhone X has been flawlessly replaced.
